Thompson Data Quality Control Report
Cruises: P__14N/01
             P__14N/02
             P__10_/00
             P__31_/02
             ISS02_/02
             ISS02_/03
             ISS02_/06
             ISS02_/08
             ISS02_/10
             IR_03_/02

Daniel M. Gilmore and Shawn Smith


World Oceanic Circulation Experiment(WOCE)


Surface Meteorological Data Assembly Center

Center for Ocean Atmospheric Prediction Studies

The Florida State University


August 20, 2001


Report WOCEMET 96-8

Version 2.0






Addendum:

Members of the WOCE Hydrographic Project Office (WHPO) and WOCEMET met at the 13th Data Products Committee (DPC) meeting in College Station, TX to discuss reconciliation of the WOCE cruise line designators. This was done in anticipation of the future release of version 3 of the WOCE global data set, and resulted in changes to several WOCE cruise line designations.

On August 20, 2001 WOCEMET removed the WOCE designation for cruises ISS02_/02, ISS02_/03, ISS02_/06, ISS02_/08, ISS02_/10, and IR_03_/02. The quality control information for these data sets has been left in this report for the user, but please note that the cruises ISS02_/02, ISS02_/03, ISS02_/06, ISS02_/08, ISS02_/10, and IR_03_/02 are NOT WOCE cruises.

WOCEMET combined the WOCE designators for the cruises P__14N/01 and P__14N/02 to be referenced as P__14N/00. The quality control information for this data has been left in this report for the user, but please note that the lines previously known as P__14N/01 and P__14N/02 are now combined together under P__14N/00.



Introduction:

The data referenced in this report were collected from the research vessel Thompson (call sign: WSRY, data provider: Neil Bogue, School of Oceanography, University of Washington) IMET automated data collection system from each of 10 seperate cruises (2 of which overlap) for WOCE. All data were recieved in electronic format. The data were converted to the FSU standard format and then pre-processed using an automated data checking program. Next a visual inspection was completed by a data quality evaluator (DQE) who reviewed, modified, and added appropriate quality control(QC) flags to the data. Details of the WOCE QC procedures can be found in Smith et al. (1996). The data quality control report summarizes the flags for the Thompson IMET data, including flags added by both the pre-processor and the analyst.




Statistical Information:

The data from the Thompson were expected to include observations every minute from 9 cruises. The start and end dates, the number of observations, and the number and percentage of non-Z flags for each cruise is given in table 1. Time (TIME), latitude (LAT), longitude (LON), platform heading (PL_HD), platform speed over water (PL_SPD), platform course (PL_CRS), platform speed over ground (PL_SPD2), earth relative wind direction (DIR), earth relative wind speed (SPD), atmospheric pressure (P), air temperature (T), sea temperature (TS), relative humidity (RH), atmospheric radiation (RAD), rainrate in millimeters/minute (RRATE), and rainrate in millimeters/hour (RRATE2) were quality controlled. A total of 5,935,690 values were checked with 108,481 flags added resulting in 1.83 percent of the values being flagged. The distribution, including percentages flagged for each variable sorted by type, is detailed in table 2.

Table 1: List of dates and number of records and flags for each of the cruises

CTCDatesNumber of RecordsNumber of ValuesNumber of FlagsPercent Flagged
P__14N/0107/06/93-08/12/9352,673895,44136,8964.02
P__14N/0208/13/93-08/31/9325,531434,0274,5671.05
P__10_/0010/05/93-11/09/9351,462874,85413,8681.59
P__31_/0201/25/94-02/18/9434,349583,9338740.14
ISS02_/0201/08/95-02/03/9531,628537,676730.01
ISS02_/03
IR_03_/02
03/13/95-04/09/9538,920661,6402,5550.39
ISS02_/0605/03/95-05/19/9523,621401,55712,6943.16
ISS02_/0807/17/95-08/15/9540,840694,28016,8912.43
ISS02_/1008/17/95-09/15/9540,349685,93317,0662.49

Table 2: Number of Flags and Percentage Flagged for Each Variable






Variable




B




F




G




H
IJKLMSTTotalPercentage of Total Data Flagged
TIME          49490.01
LAT 274     133   4070.11
LON 274     133   4070.11
PL_HD1  4 10182    1870.05
PL_SPD     10291  3 1960.05
PL_CRS   4 10183    1880.05
PL_SPD222    1326   1 13490.37
DIR   4 188514919  431 172394.67
SPD   45265250774  26 5346114.48
P  4424 159514411 1215  206465.59
T  32 96241003 121512 28950.78
TS  68 9 5847  18 59401.61
RH  43811 5571295 1214  35050.95
RAD4    481292 1215  19920.54
RRATE           00.00
RRATE2         7 70.00
Total:2754849621918842488797266485949849369541.73
Percentage of data flagged0.000.010.070.000.000.121.270.000.070.010.001.73



B:
Data Point out of Bounds
F: Unreal Ship movement
G: Data point >4 standard deviations from climatological mean
H: Discontinuity in data
I: Interesting data point
J: Erroneous data point
K: Caution/Suspect Data
L: Ship position over land
M: Mechanical Instrument Failure
S: Spike in data
T: Time not Sequential




Summary of Flags:

A. Significant problems
Normally for IMET vessels, the data assembly center(DAC) receives only winds relative to the ship along with the necessary navigation values--platform heading or wind compass, platform speed over ground and platform course over the ground. From these, the DAC computes true winds using the method described in 1997 addendum.

For the Thompson, PL_HD, PL_SPD2, PL_CRS, PL_WDIR, and PL_WSPD were used to calculate all DIR and SPD values. The results were less than ideal, however. As is illustrated in example 1, both DIR, at 4.04% of the data, and SPD, at 13.75% of the data, retained a signal of the ship's movement. This is the reason for the high percentage of "K" flags added to DIR and SPD. Since our calculation method has been verified, other speculations for this result are left to the user.

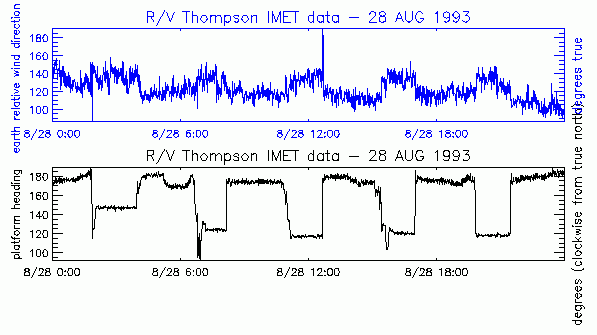

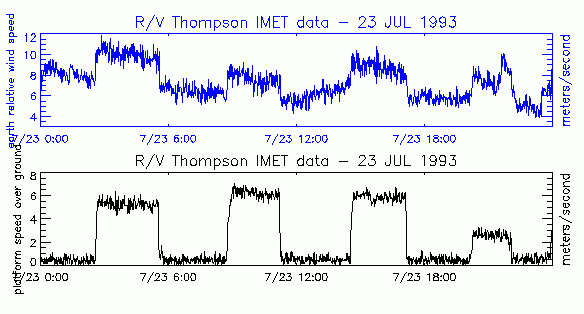

(Example 1)

There were not any other significant problems with this data set. Of the 14,412 "K" flags added to pressure(P), all are a result of a signature of the ship's movement within the pressure observations, especially during the P__14N/01 cruise. We are assuming that the barometer was placed in a location such that when the ship was moving, an additional pressure was exerted by the oncoming air on the barometer. This caused the barometer to read higher when the ship was moving with a signature difference between 0.1mb and 2.0mb. The problem, however, seems to have been remedied before the P__14N/02 cruise as it only rarely reappears during any following cruises. No confirmation of instrument malfunction was available to date.

During preprocessing, 4,424 "G" flags were added to atmospheric pressure(P). These are due to the extreme low pressure events that occurs during times when the Thompson is near the Antarctic coast. For pressure to vary more than 4 standard deviations from climatology during one of these events is not uncommon. However, since the flags are more descriptive than cautionary, the analyst left the flags to indicate these low pressure events.

Atmospheric pressure, air temperature, relative humidity, and atmospheric radiation all have 1,215 "M" flags because the sensors recorded all observations of these variables as the same for 22 hours on 07/07/93 - 07/08/93. A similar occurance happened on 07/17/95 except that the sensors didn't go dead for an extended period of time. Rather they would transmit 1 value for many continuous observations, then transmit another value for more continuous observations with steps of 0.5mb - 1mb each time. This could indicatae on-board calibration, but no confirmation was available. These values, all 481 of them on that day for P,T,RH, and RAD, were flagged with a "J". Erroneous data, "J", flags were also added to PL_HD, PL_SPD, PL_CRS, and PL_SPD2 mainly due to the same value being transmitted for an extended period of time.

B.
Other Cautionary Flags:




Final Note:
These data are in very good condition and, with the exception of the problems noted above, the analyst foresees no difficulty in using this data.



References:
Smith, S.R., C. Harvey, and D.M. Legler, 1996: Handbook of Quality Control Procedures and Methods for Surface Meteorology Data. WOCE Report No. 141/96, Report WOCEMET 96-1, Center for Ocean Atmospheric Prediction Studies, Florida State University, Tallahassee, FL 32310.
