Comparison of momtum2 and momtum4, especially use of visco2/veldf2 or visco4/veldf4:

Fig 1: Total Kin. Energy (kg.s-2) for completed experiments.

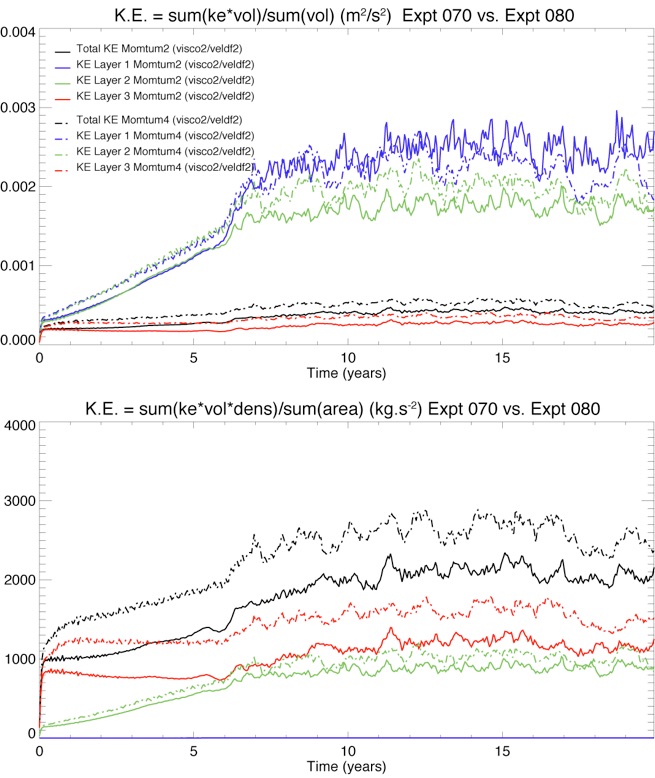

Fig 2: Kin. Energy for each layer for 070 (momtum2) and 080 (momtum4) in m2/s2 on top and in kg.s-2 on the bottom. Both experiments only use veldf2 and visco2.

Fig 3: Kin. Energy for each layer for 092 (momtum2) and 102 (momtum4) in m2/s2 on top and in kg.s-2 on the bottom. Both experiments only use visco4 and veldf4.

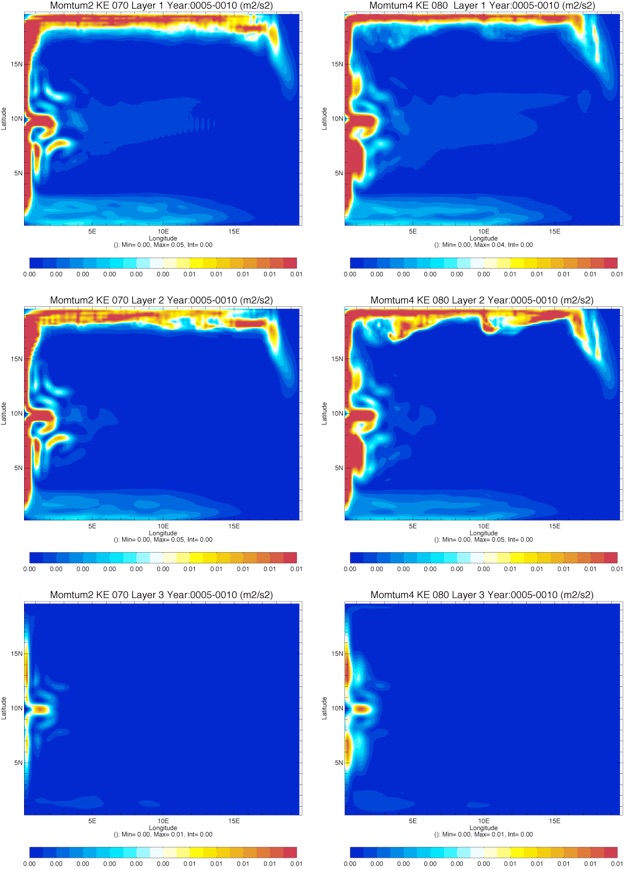

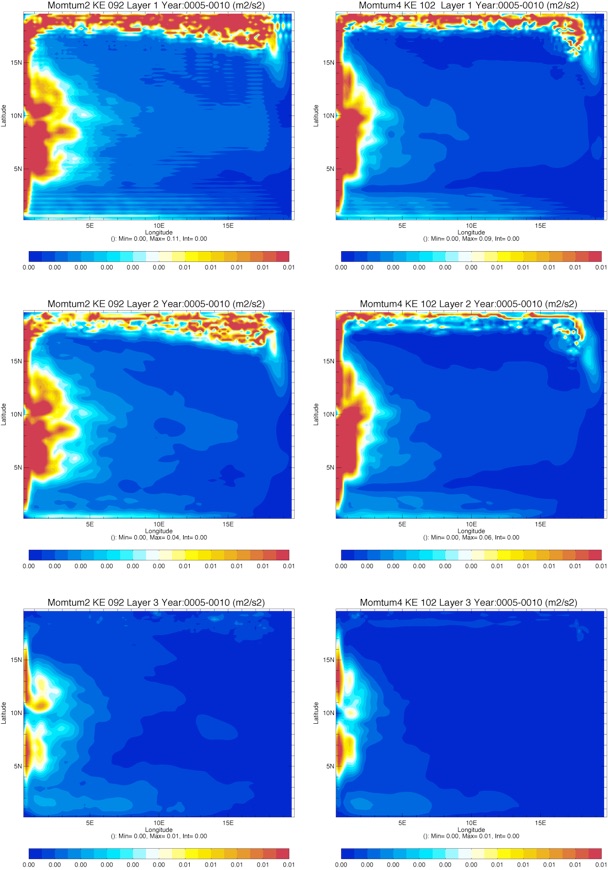

Comparison of Kinetic Energy plots on each layer averaged between year 5 and year 10:

momtum2/visco2/veldf2

momtum2/visco4/veldf4

momtum4/visco2/veldf2

momtum4/visco4/veldf4

Layer 1

Layer 2

Layer 3

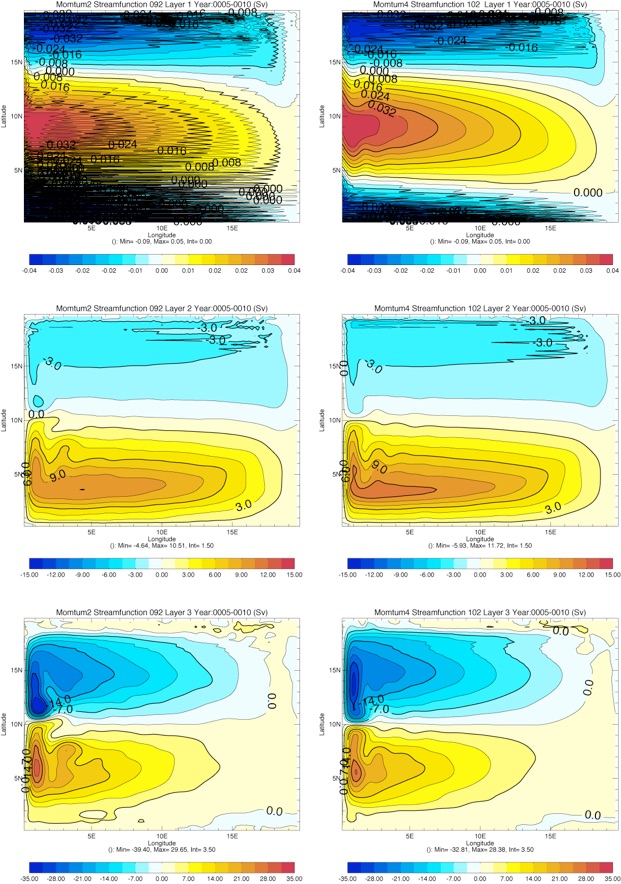

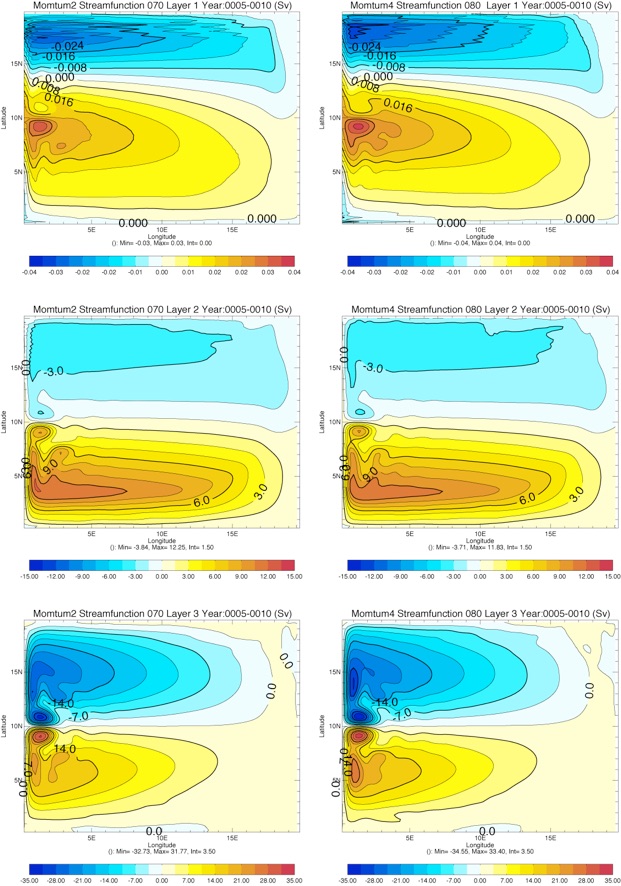

Comparison of Streamfunction plots on each layer averaged between year 5 and year 10:

momtum2/visco2/veldf2

momtum2/visco4/veldf4

momtum4/visco2/veldf2

momtum4/visco4/veldf4

Layer 1

Layer 2

Layer 3

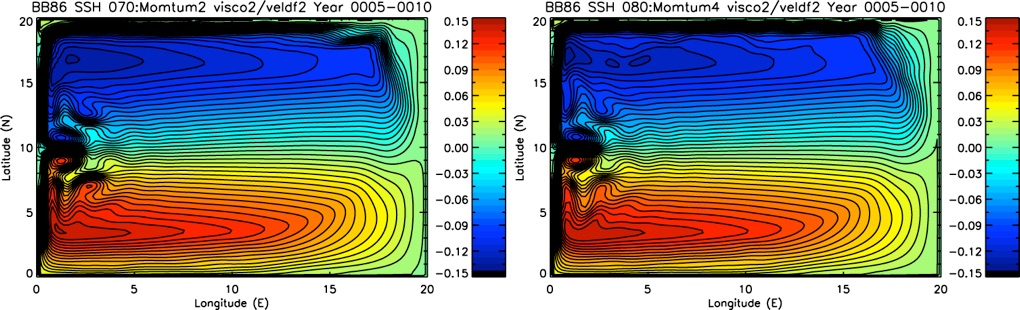

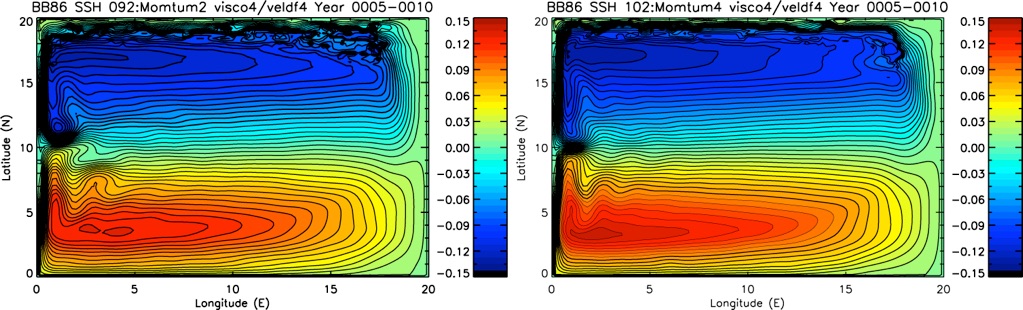

Comparison of SSH plots averaged between year 5 and year 10 :

momtum2/visco2/veldf2

momtum4/visco2/veldf2

momtum2/visco4/veldf4

momtum4/visco4/veldf4

BB86 configuration with Layer 1 at 1000m, click here
