DBB86 Configurations

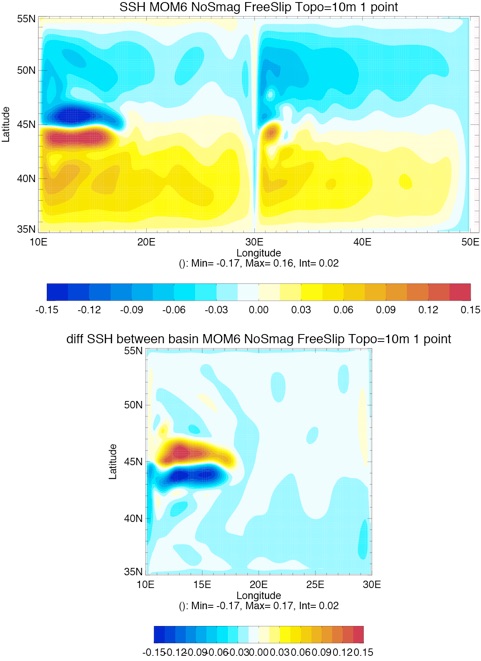

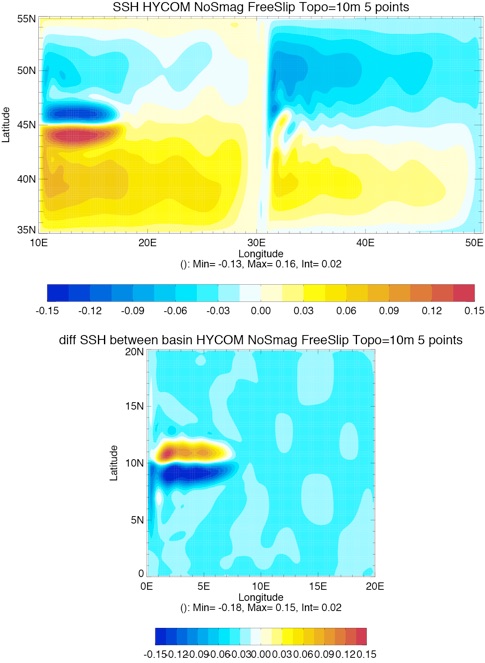

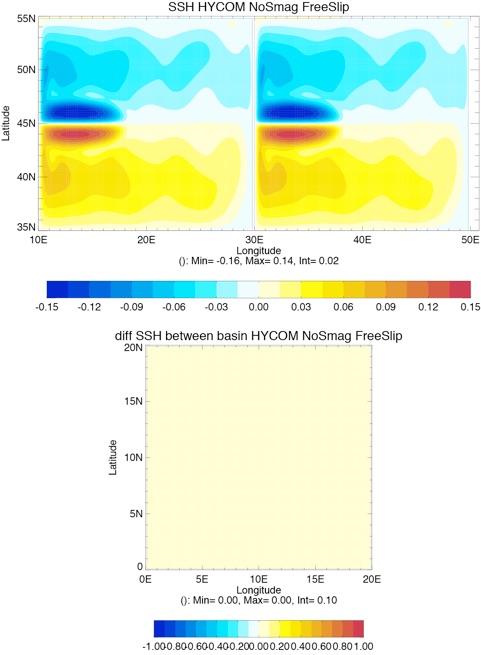

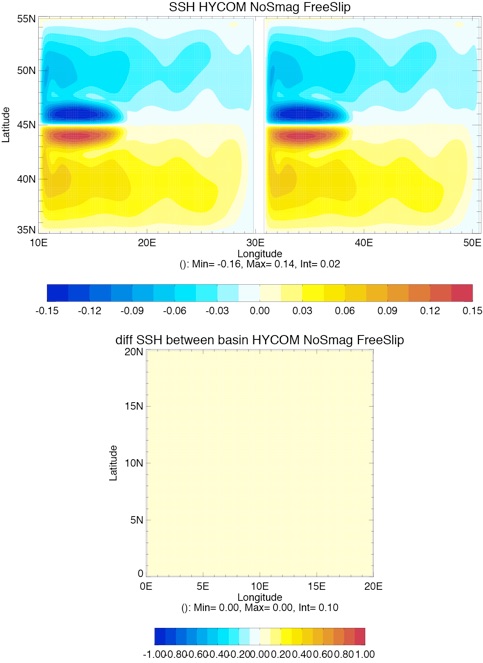

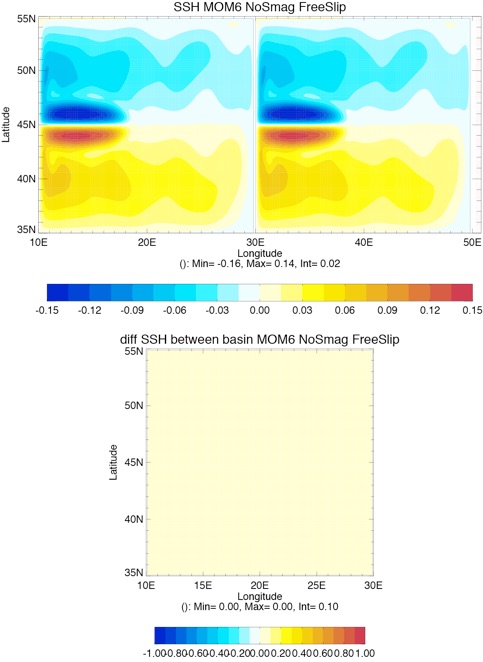

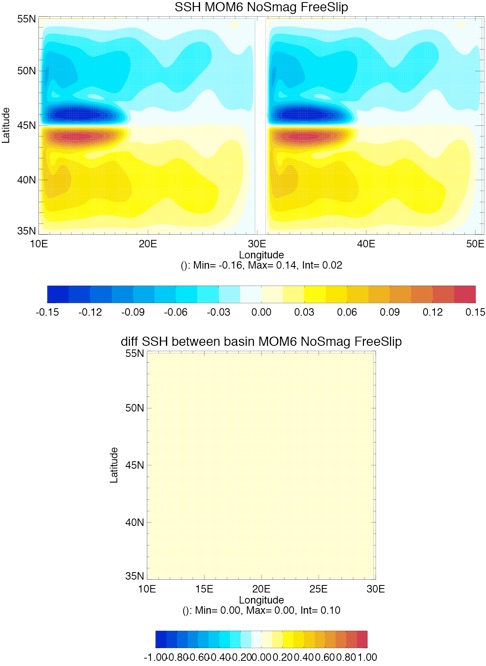

No Smagorinsky - FREE SLIP
Topo at 0m, 5 points in the middle of the domain
Topo at 10m, 5 points in the middle of the domain
Topo at 0m, 1 point in the middle of the domain

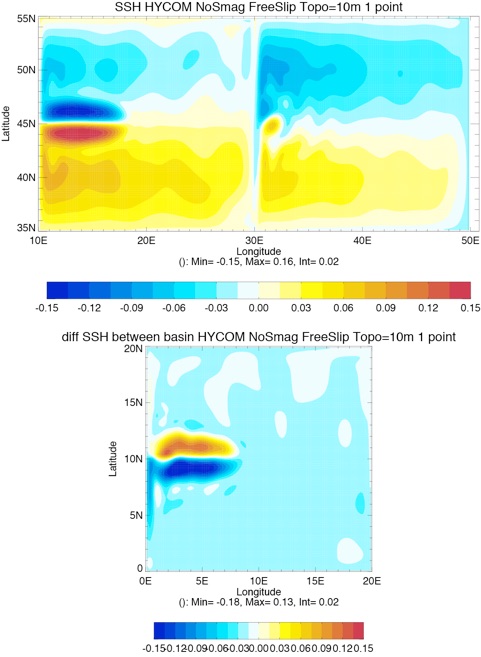

Topo at 10m, 1 point in the middle of the domain

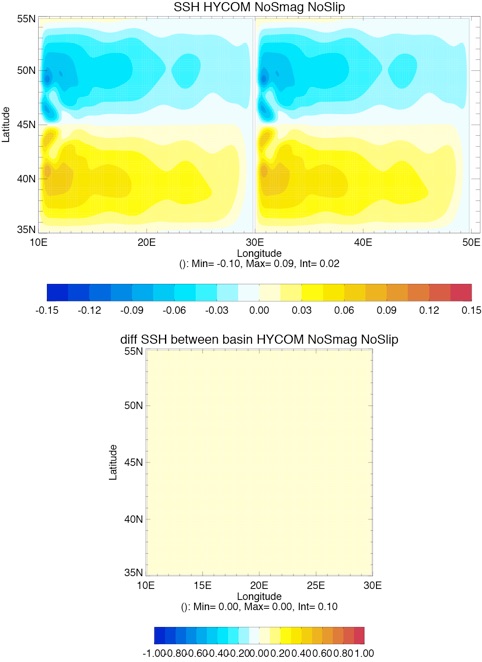

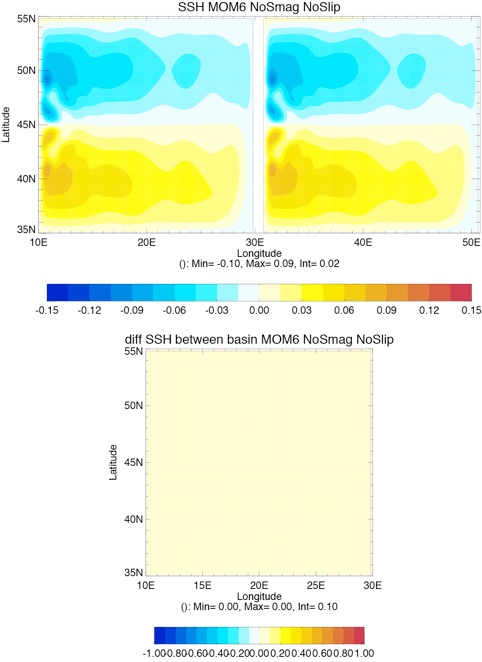

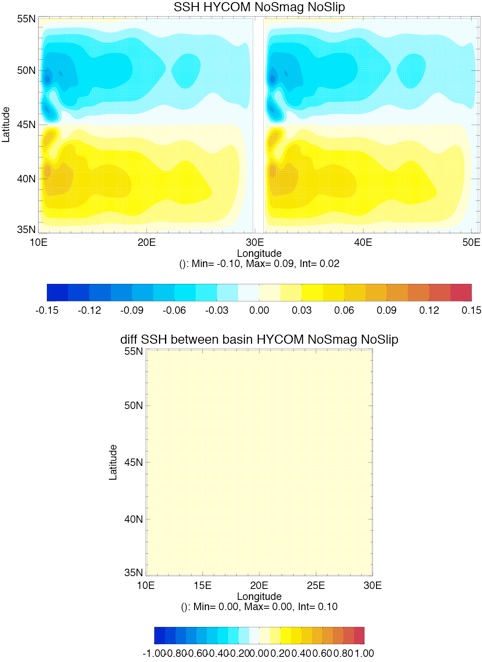

No Smagorinsky - NO SLIP
Topo at 0m, 5 points in the middle of the domain

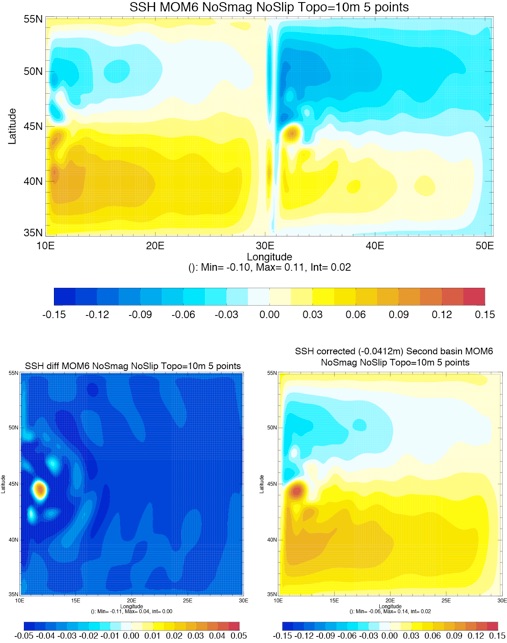

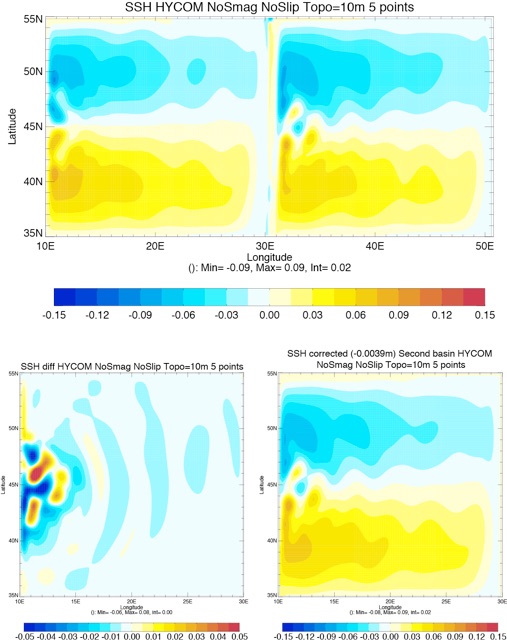

Topo at 10m, 5 points in the middle of the domain

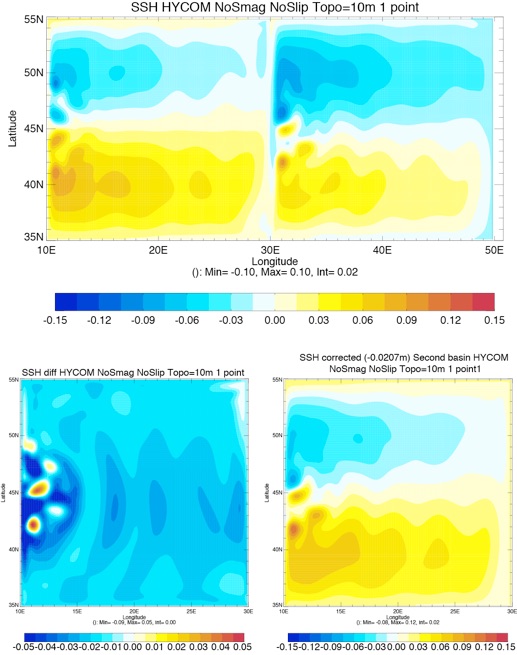

Topo at 0m, 1 point in the middle of the domain

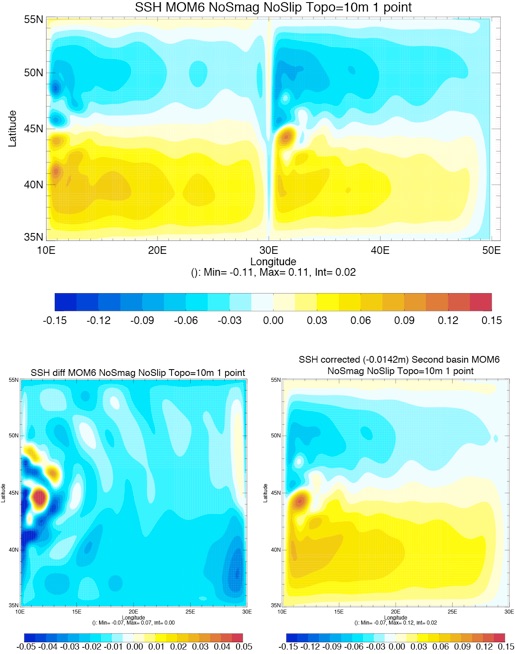

Topo at 10m, 1 point in the middle of the domain

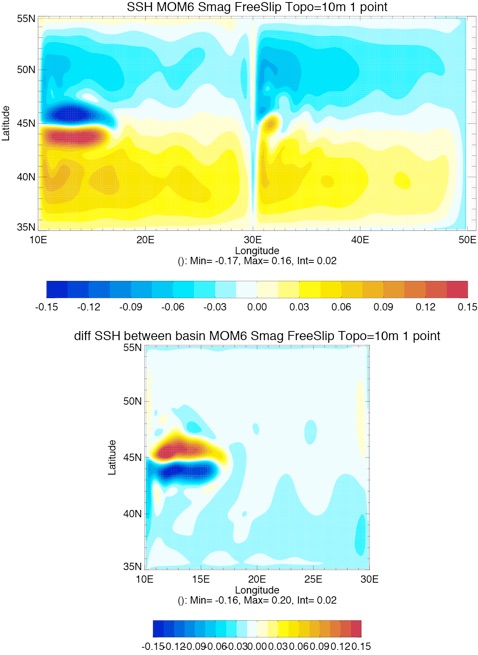

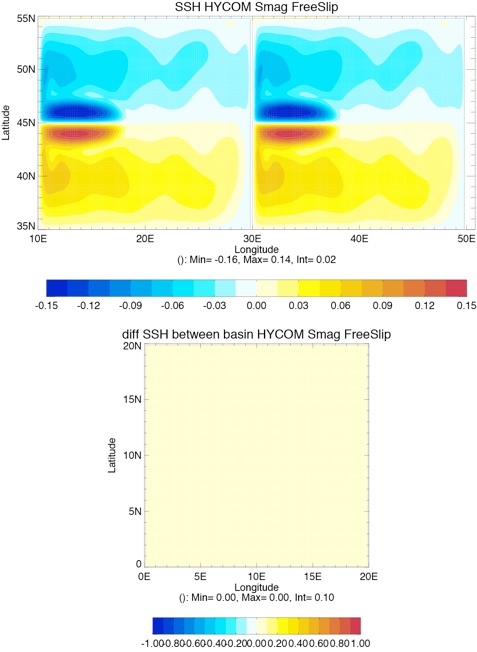

Smagorinsky - FREE SLIP

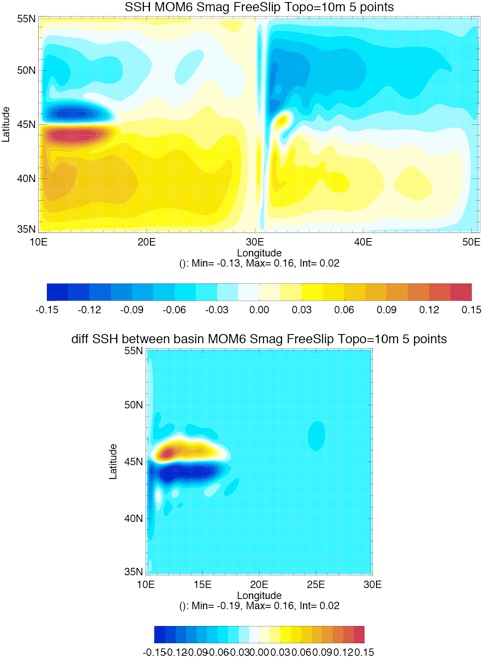

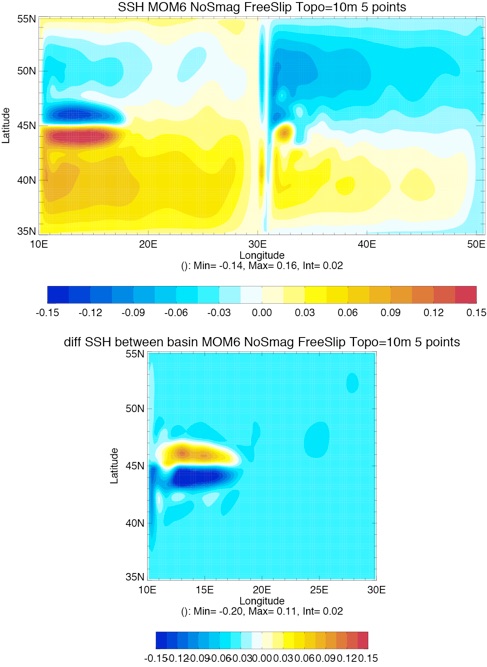

Topo at 0m, 5 points in the middle of the domain
Topo at 10m, 5 points in the middle of the domain
Topo at 0m, 1 point in the middle of the domain
Topo at 10m, 1 point in the middle of the domain
No Smagorinsky - NO SLIP
Topo at 0m, 5 points in the middle of the domain
Topo at 10m, 5 points in the middle of the domain
Topo at 0m, 1 point in the middle of the domain
Topo at 10m, 1 point in the middle of the domain

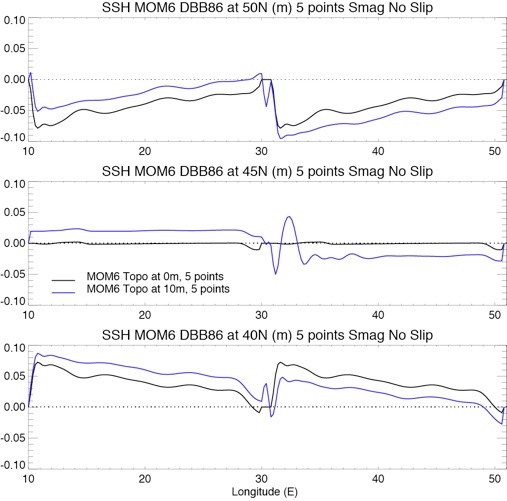

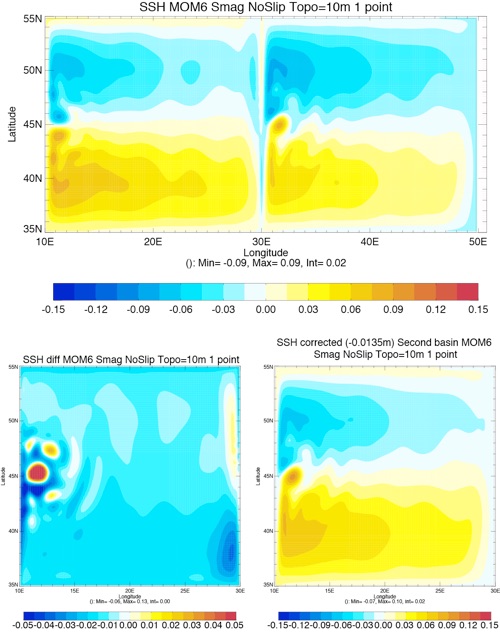

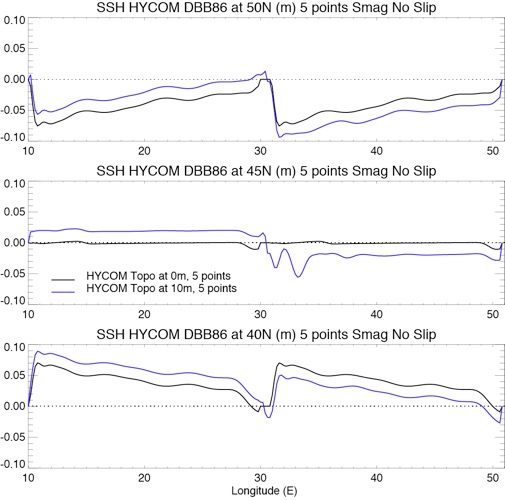

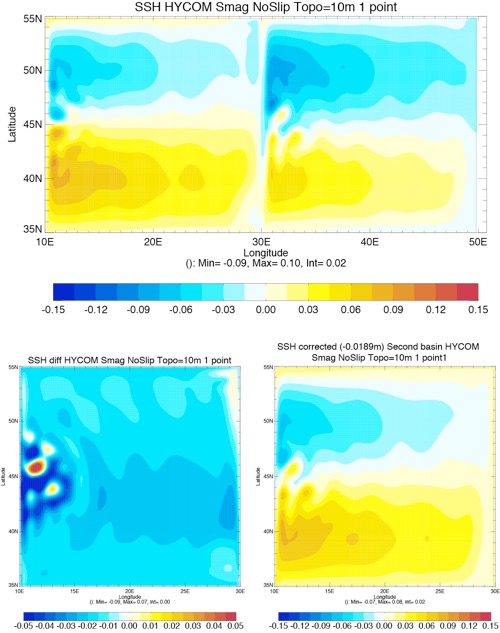

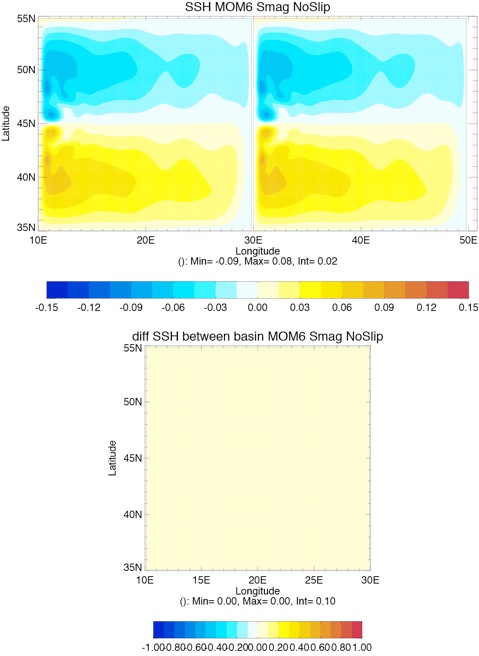

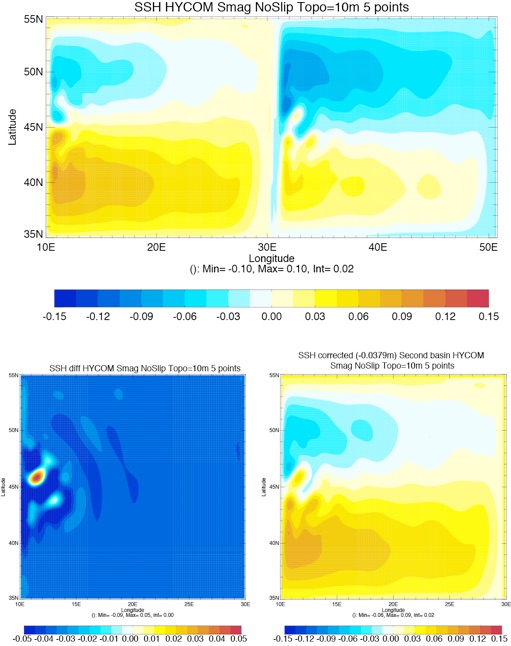

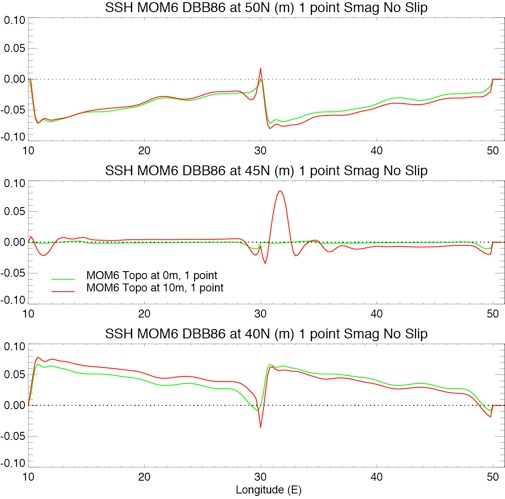

Smagorinsky - NO SLIP

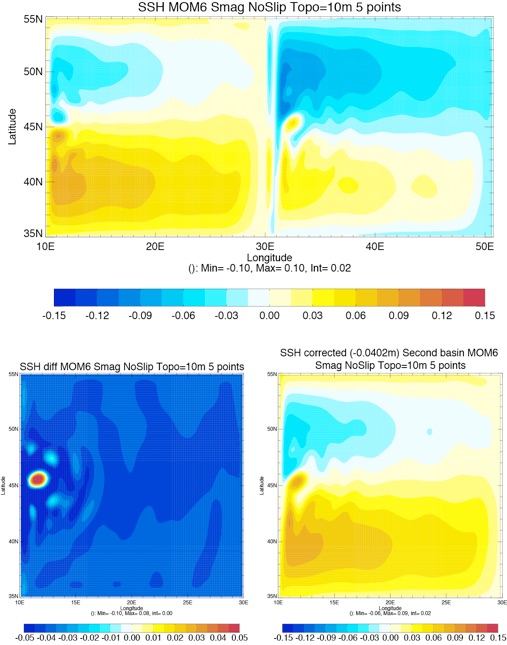

Topo at 0m, 5 points in the middle of the domain
Topo at 10m, 5 points in the middle of the domain
Topo at 0m, 1 point in the middle of the domain
Topo at 10m, 1 point in the middle of the domain

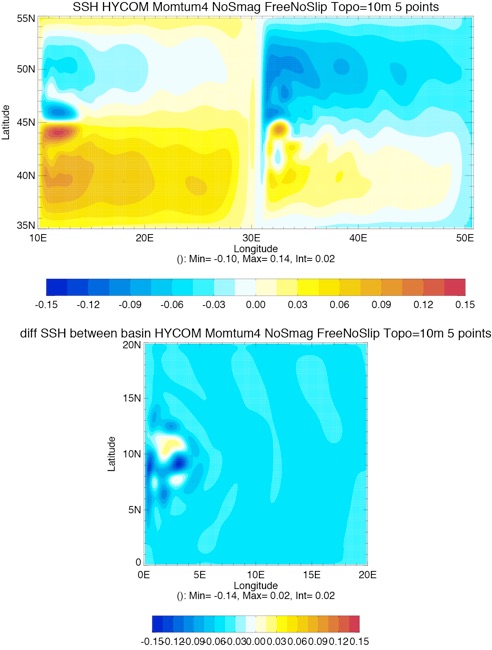

HYCOM MOMTUM4 Experiments:

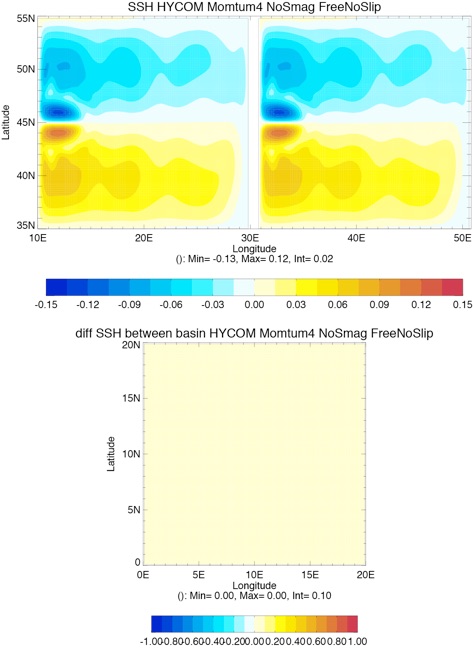

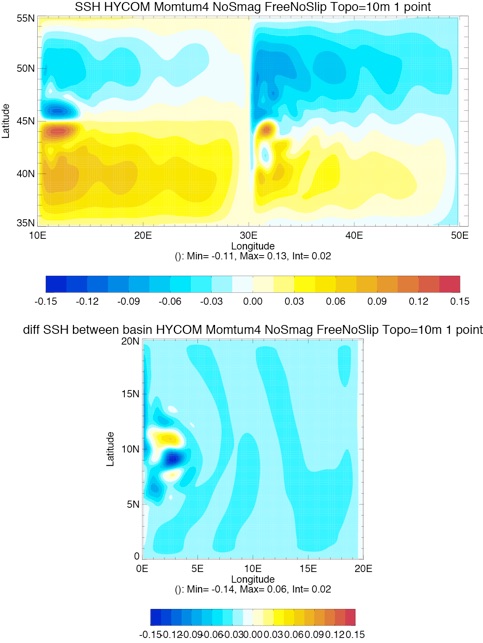

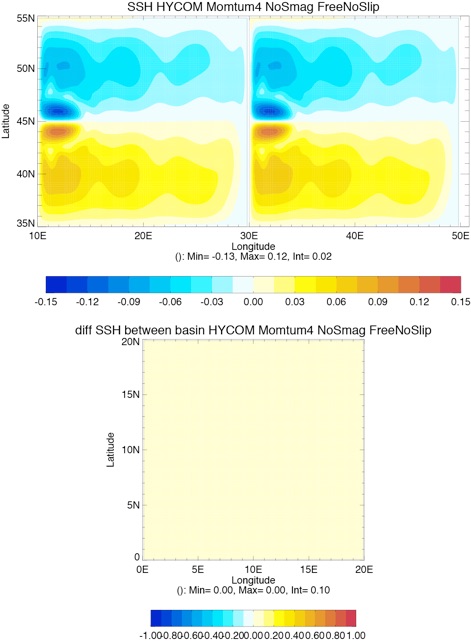

No Smagorinsky
Topo at 0m, 5 points in the middle of the domain
Topo at 10m, 5 points in the middle of the domain

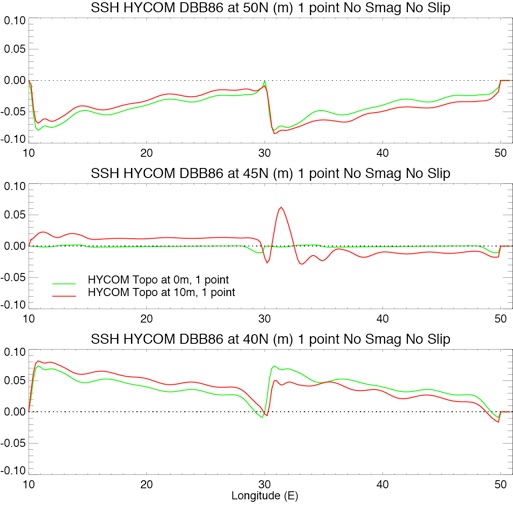

Topo at 0m, 1 point in the middle of the domain
Topo at 10m, 1 point in the middle of the domain

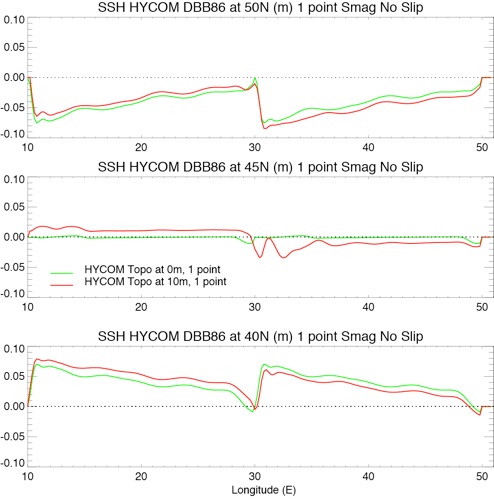

HYCOM

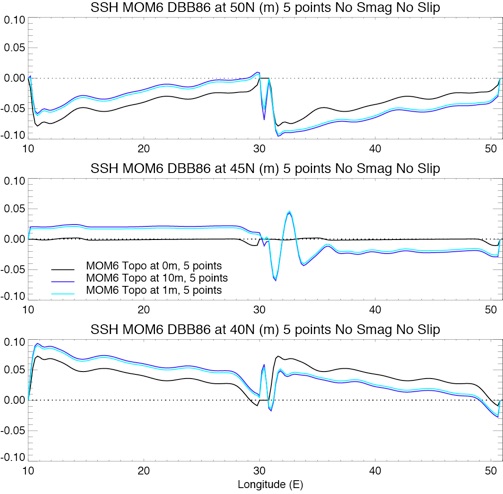

MOM6

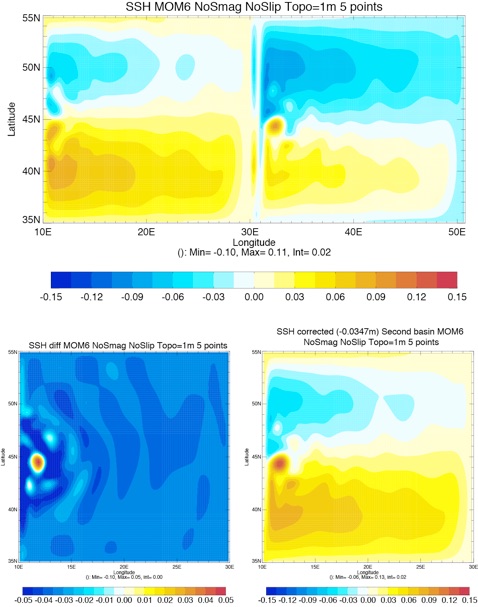

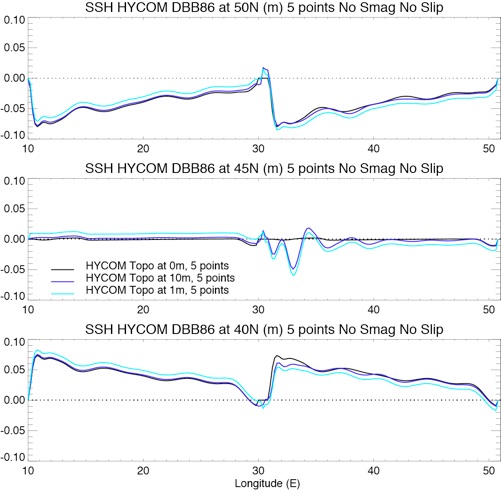

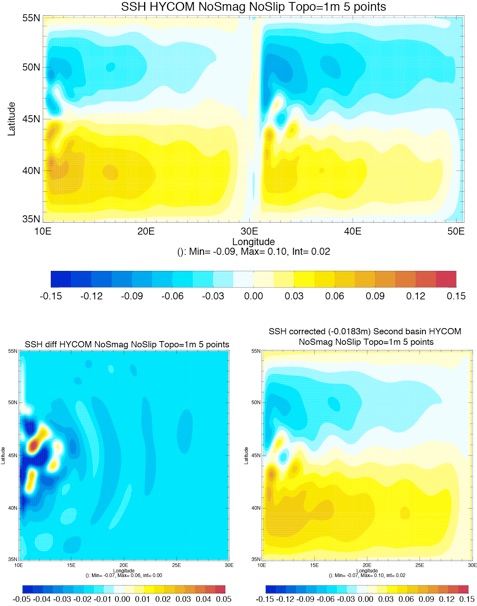

Topo at 1m, 5 points in the middle of the domain

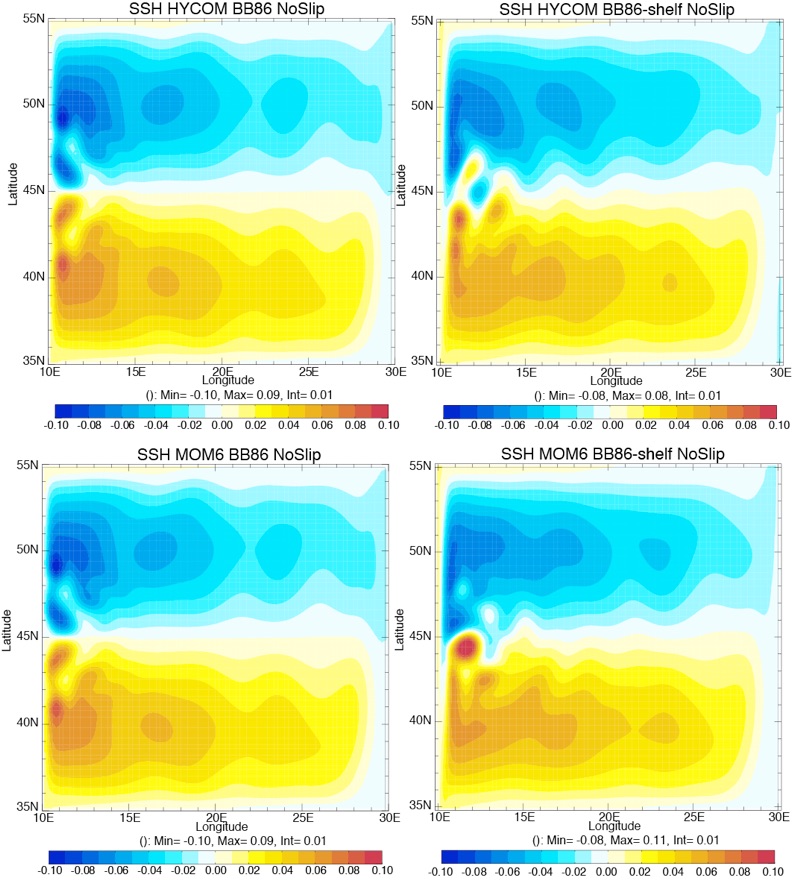

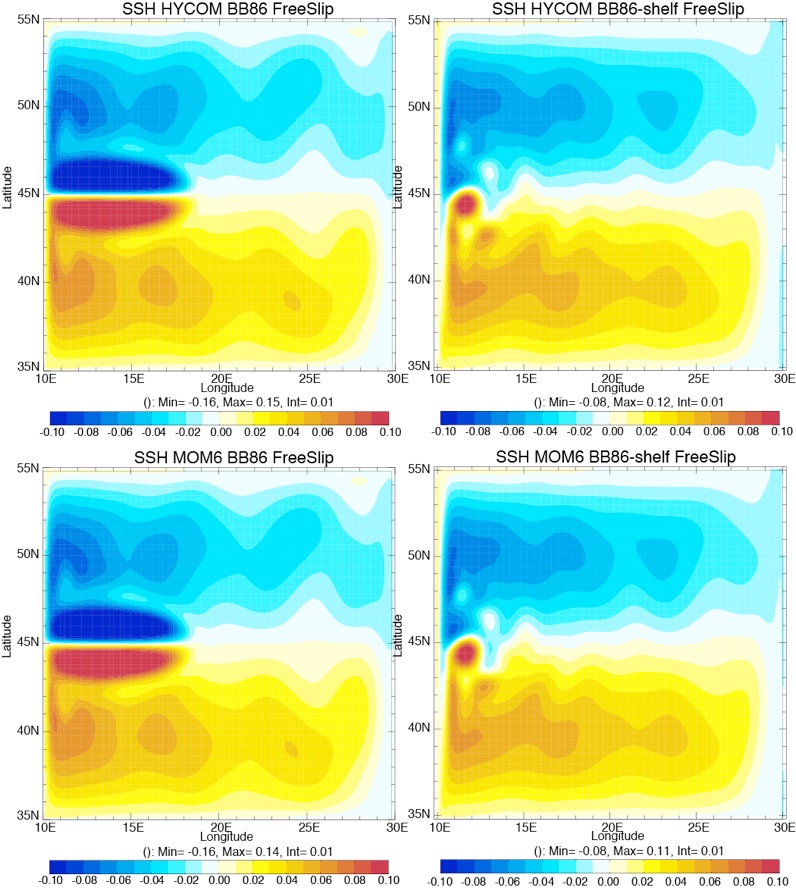

Comparison of BB86 with BB86-SHELF experiments:
BB86: Box with 5000m bottom, 2 layers (1000m interface)
BB86-shelf: Box BB86 + shelves (1point) at 10m on the eastern and western boundaries
NO SLIP
FREE SLIP
HYCOM
MOM6
BB86
BB86-shelf
HYCOM
MOM6
BB86
BB86-shelf

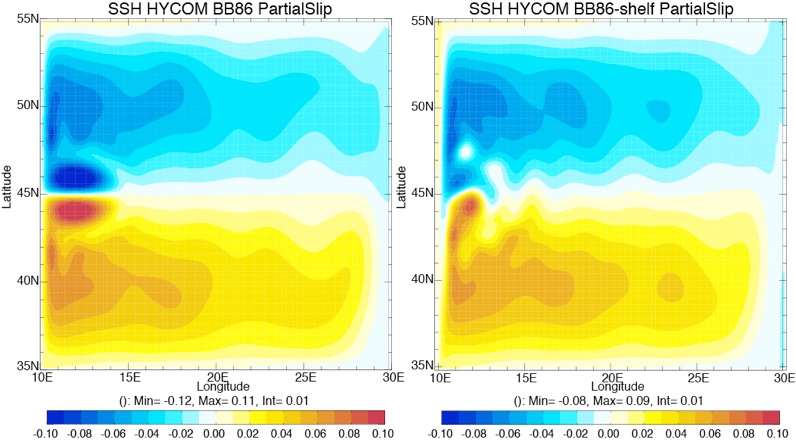

PARTIAL SLIP
BB86
BB86-shelf
HYCOM

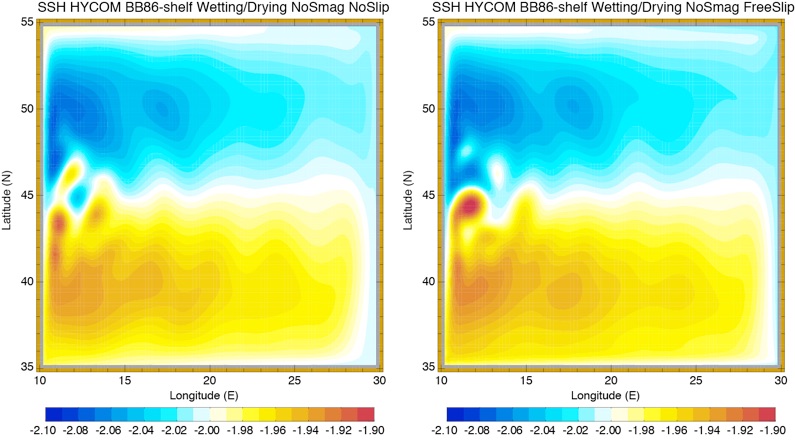

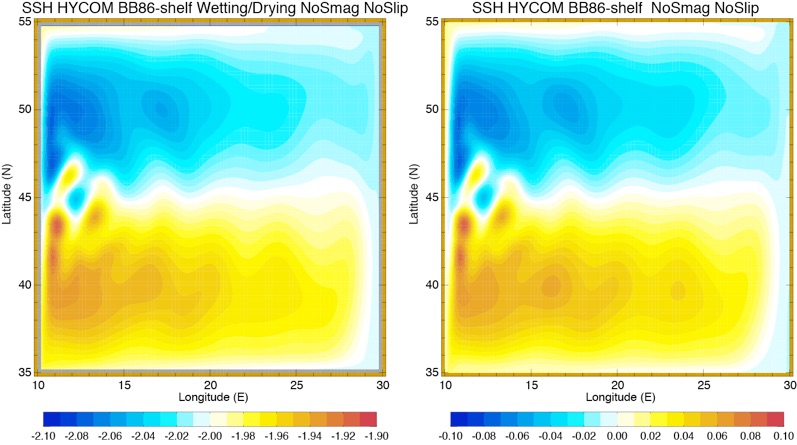

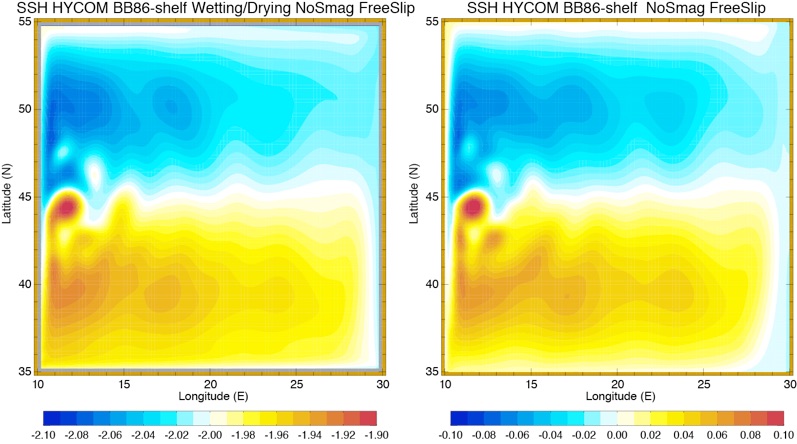

BB86-SHELF with Wetting and Drying
BB86-shelf with 0.5m shelf and SSH at -2m (bottom at 5002m)
The land is colored in brown, and dry cells in grey (thickness < 1 cm)
NO SLIP
FREE SLIP
HYCOM
HYCOM
NO SLIP
BB86-shelf
BB86-shelf Wetting/Drying
FREE SLIP
BB86-shelf
BB86-shelf Wetting/Drying

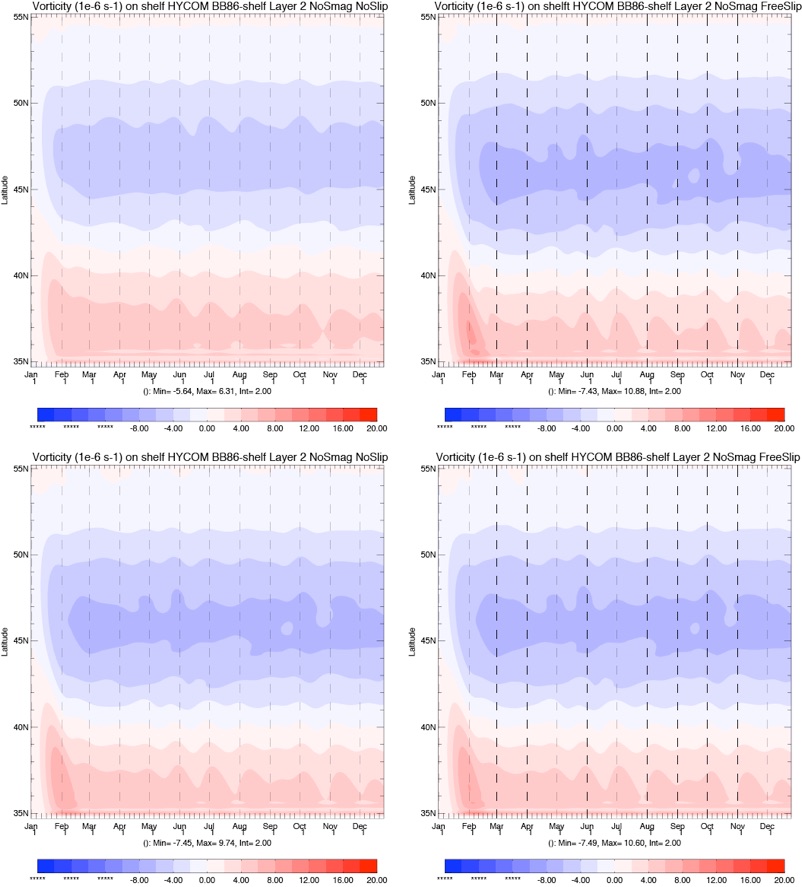

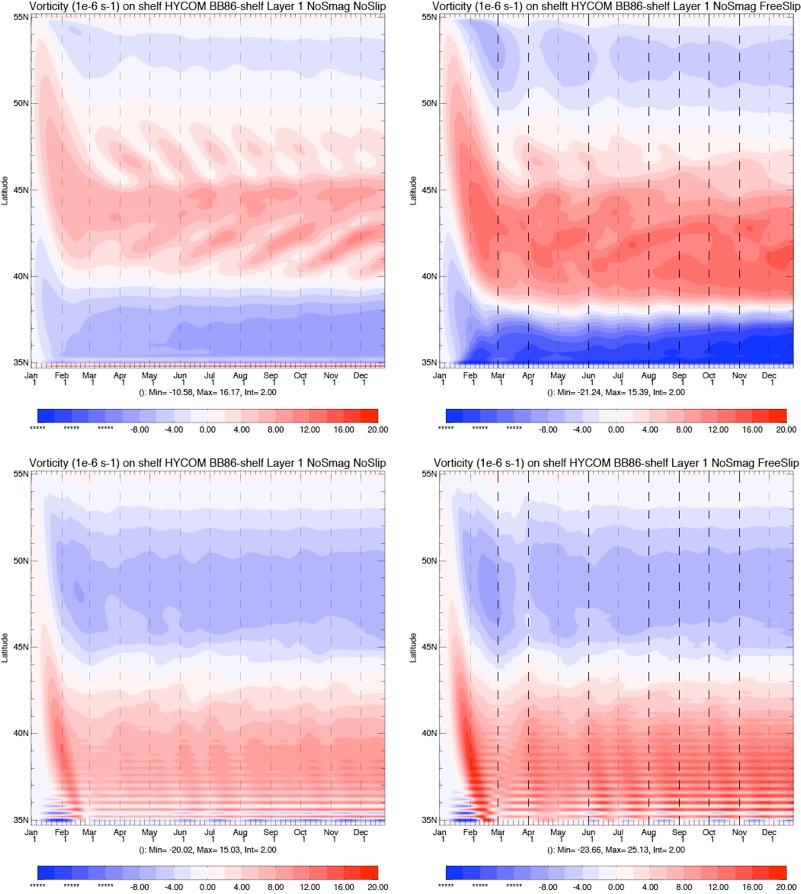

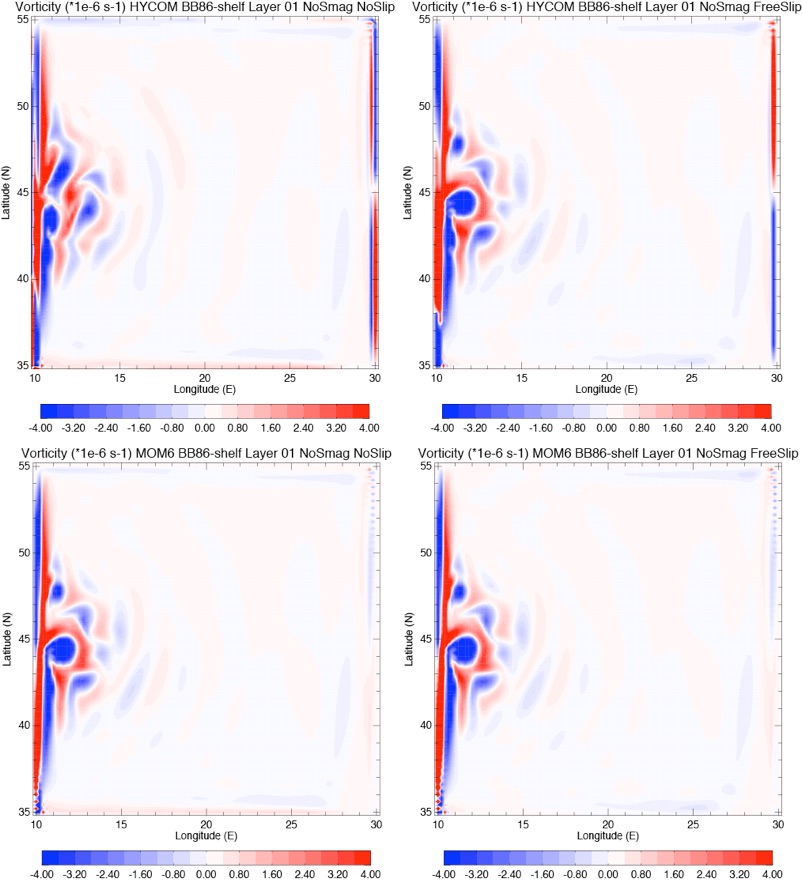

BB86-shelf Vorticity
MOM6
HYCOM

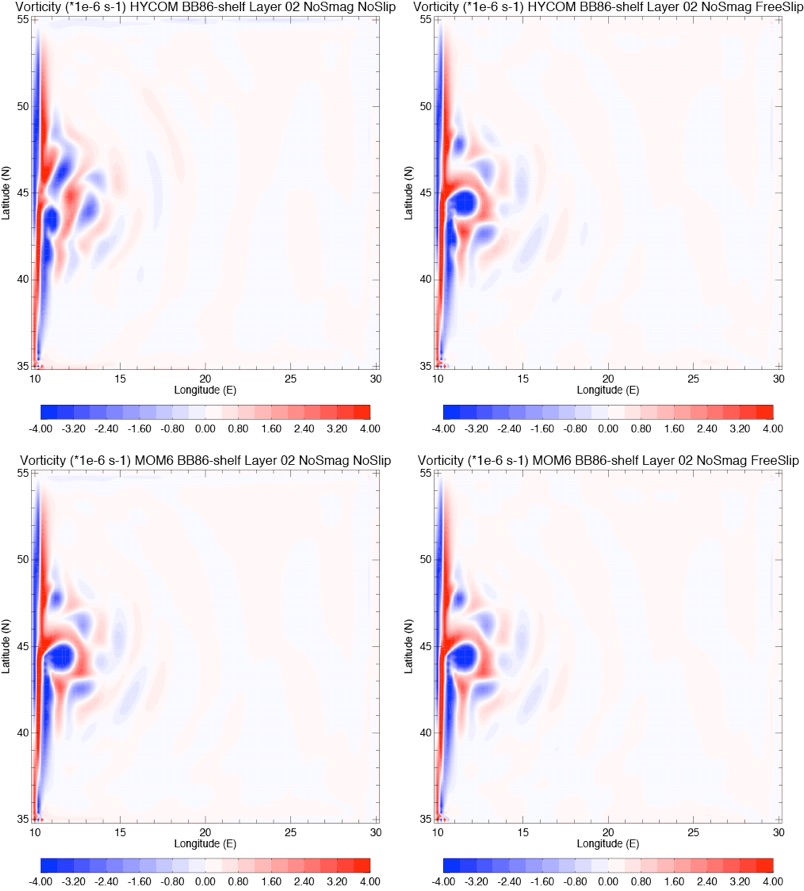

Layer 1
NO SLIP
FREE SLIP
MOM6
HYCOM
Layer 2
NO SLIP
FREE SLIP

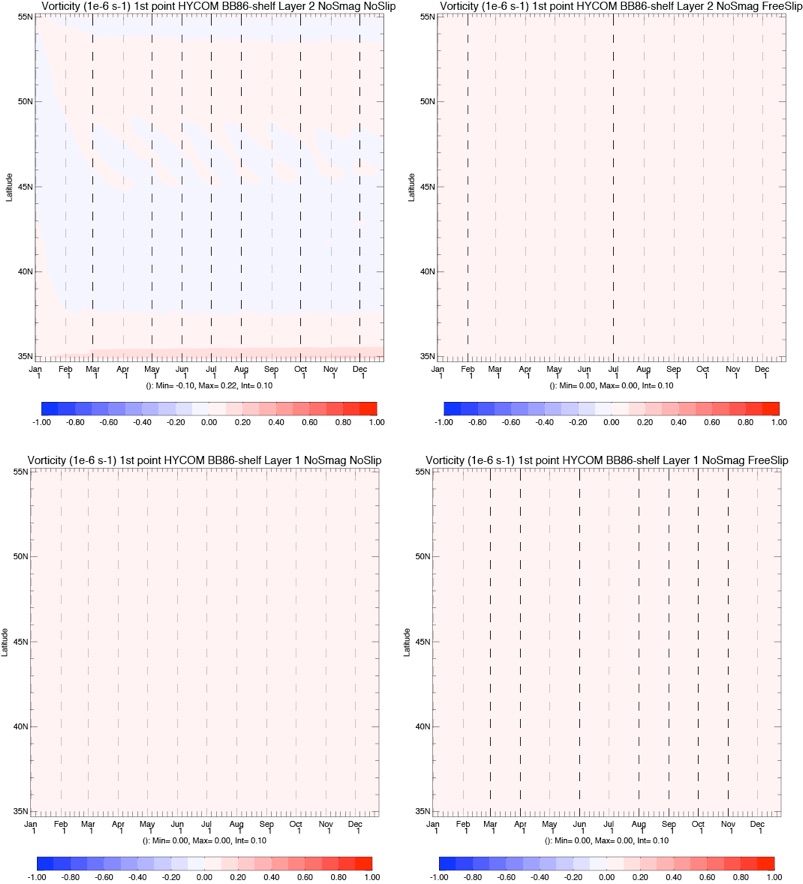

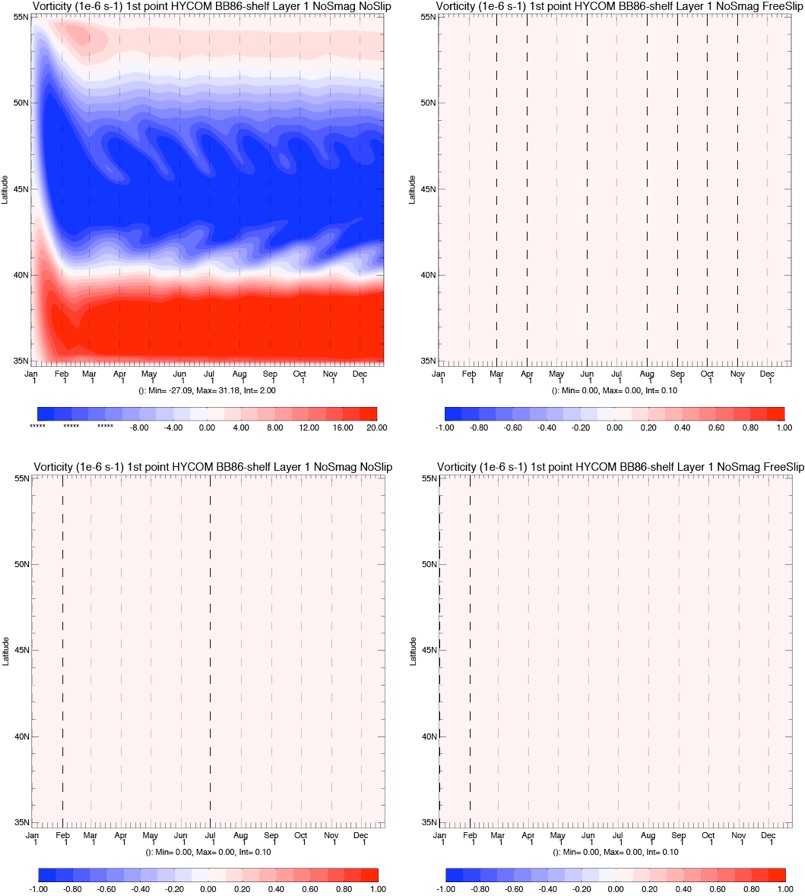

BB86-shelf Vorticity time series of 1st point
Layer 1
NO SLIP
FREE SLIP
MOM6
HYCOM
MOM6
HYCOM
Layer 2
NO SLIP
FREE SLIP
0.0
0.0
0.0
0.0
0.0
0.0
BB86-shelf Vorticity time series of 2nd point (On Shelf)
Layer 1
NO SLIP
FREE SLIP
MOM6
HYCOM
Layer 2
NO SLIP
FREE SLIP
MOM6
HYCOM

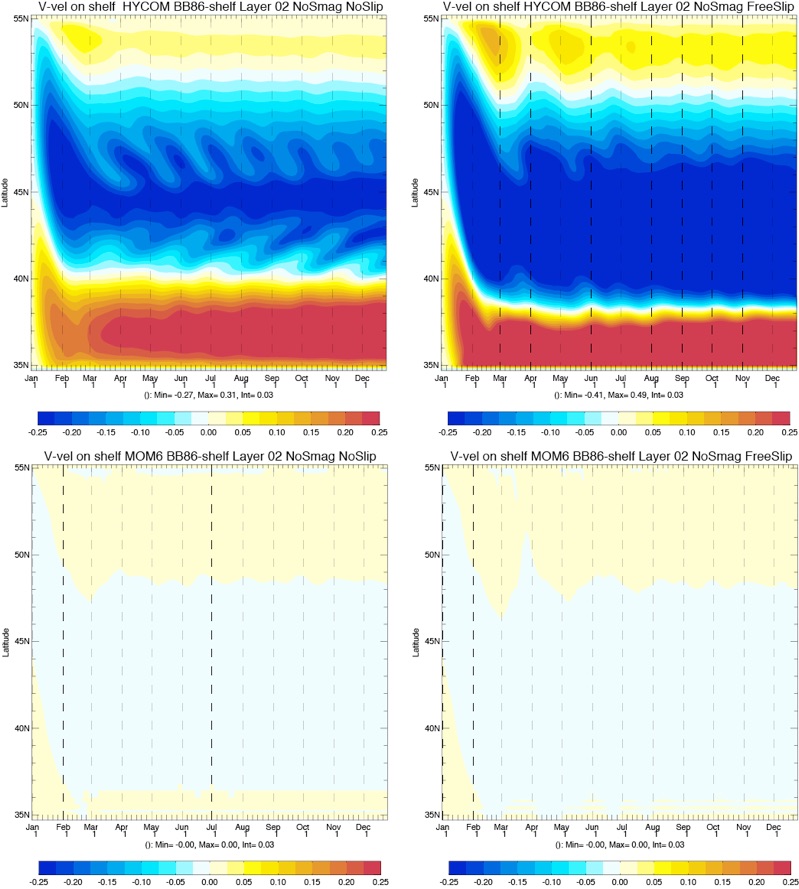

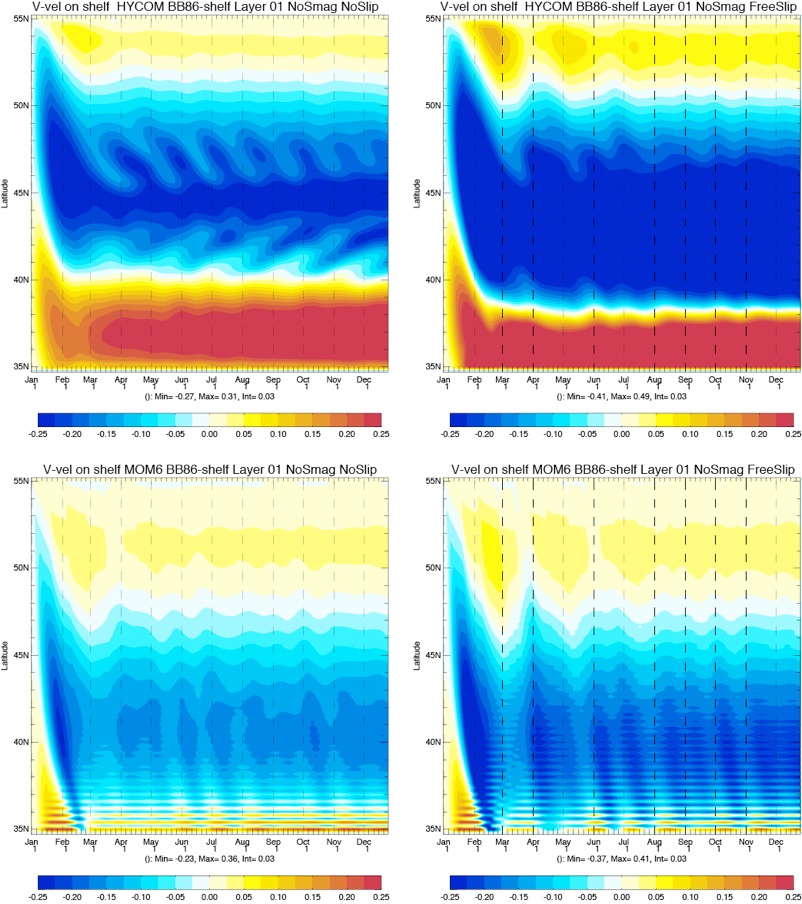

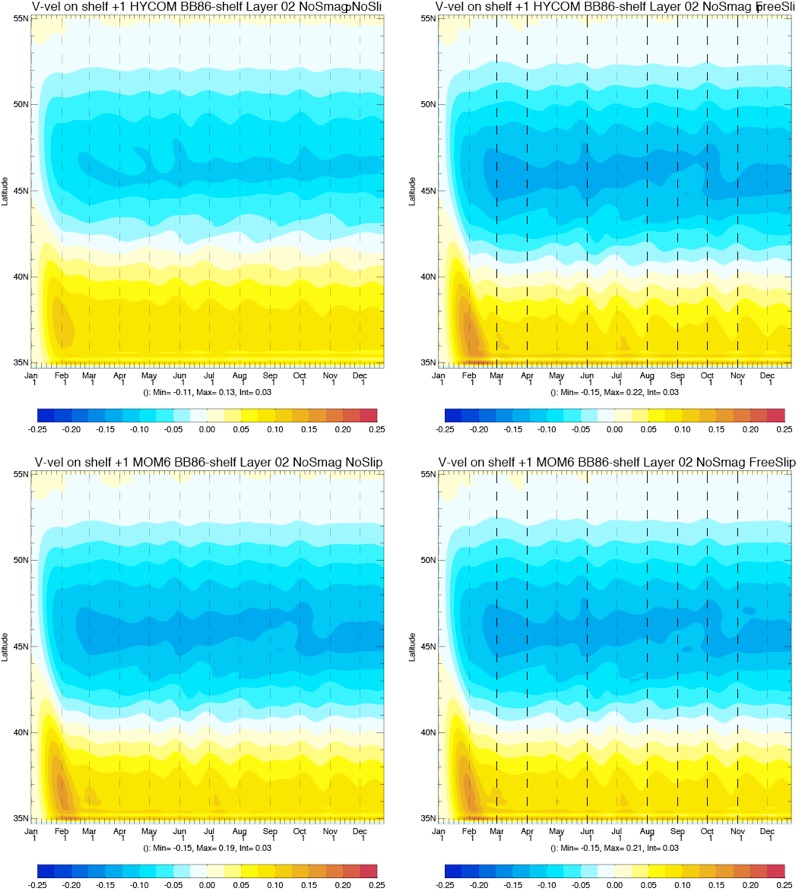

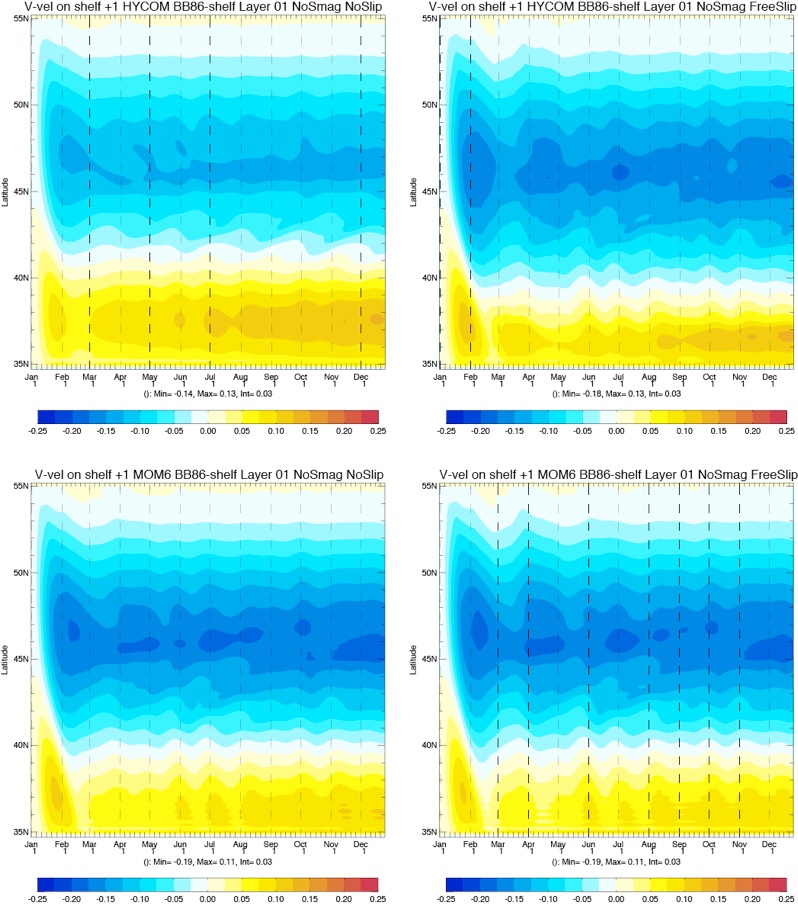

BB86-shelf V-vel time series of 2nd point (On Shelf)
Layer 1
NO SLIP
FREE SLIP
MOM6
HYCOM
Layer 2
NO SLIP
FREE SLIP
MOM6
HYCOM
0.0
0.0
V-Vel(layer 2) = V-vel(layer 1) if (h = 0.)
BB86-shelf V-vel time series of 3rd point (point after shelf)
Layer 1
NO SLIP
FREE SLIP
MOM6
HYCOM
Layer 2
NO SLIP
FREE SLIP
MOM6
HYCOM

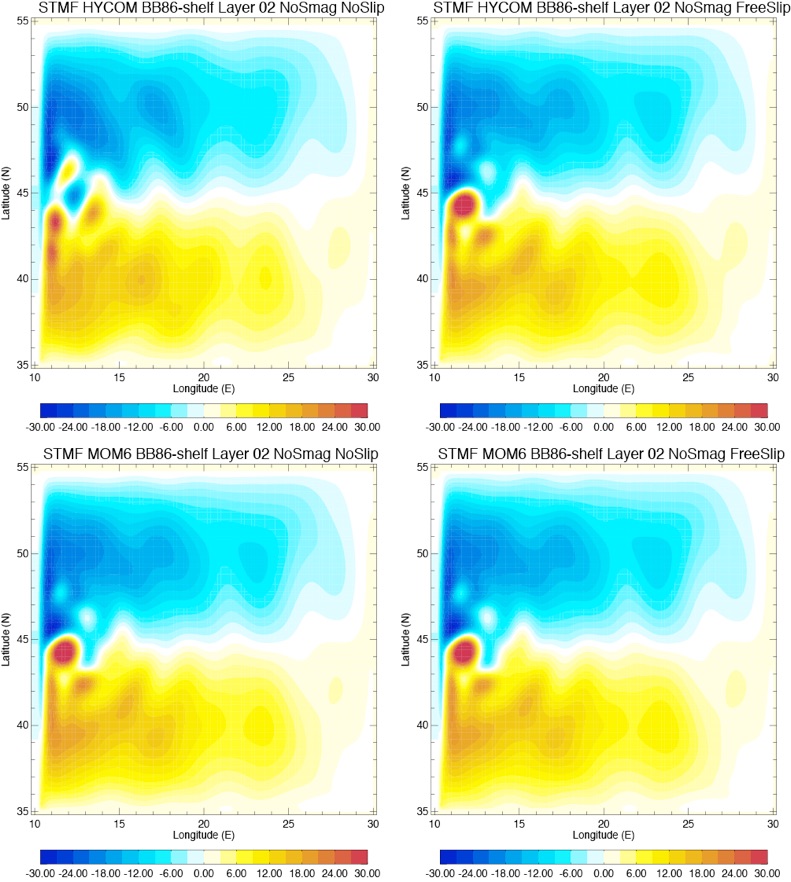

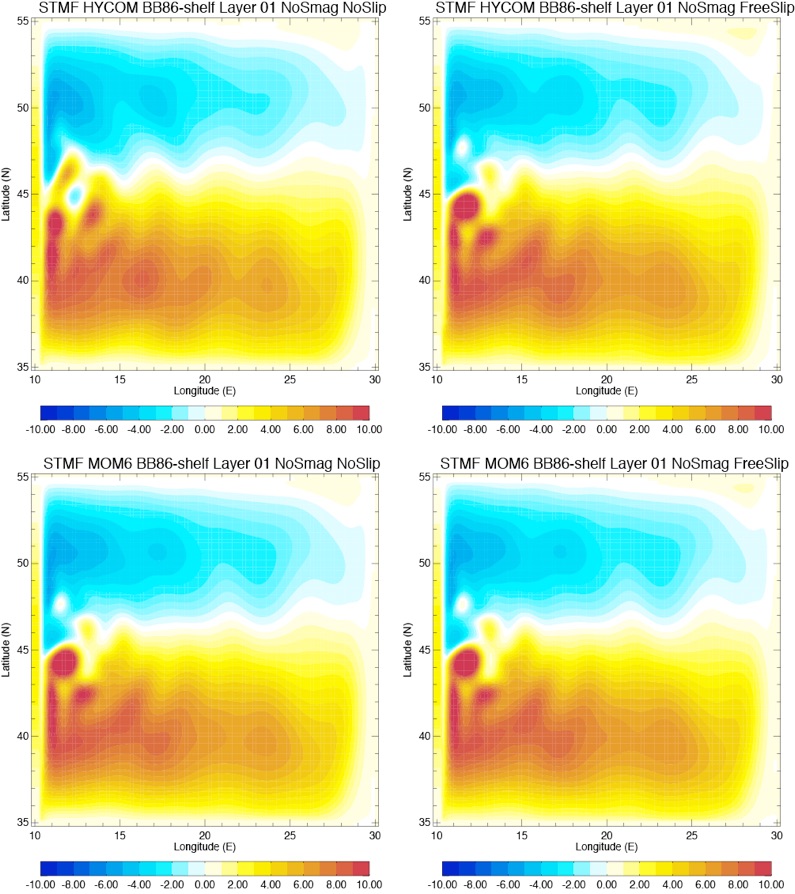

BB86-shelf Streamfunction
MOM6
HYCOM
Layer 1
NO SLIP
FREE SLIP
MOM6
HYCOM
Layer 2
NO SLIP
FREE SLIP
